Reference Only

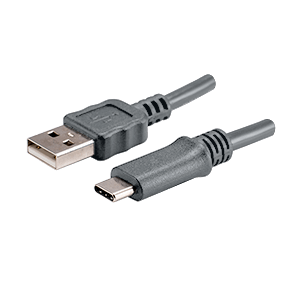

CBL-UA-UC-10GP
Cable, USB, 1000 mm, Type A 2.0 to Type C 2.0, 28 AWG, PVC, Gray
Product Description
Cable, USB, 1000 mm, Type A 2.0 to Type C 2.0, 28 AWG, PVC, Gray
Technical Specifications
| Attribute | Description |
|---|---|
| Cable Length (mm) | 1000 |
| Cable Style | Round |
| Color | Gray |
| Connector 1 | Type A Plug |
| Connector 2 | Type C Plug |
| Current Rating (A) | 2.4 |
| IP Rating | No IP Rating |
| Jacket Material | PVC |
| Operating Temp MAX (°C) | 80 |
| Operating Temp MIN (°C) | -20 |
| Series | CBL-UC-UC |
| Shielding | Yes |
| USB Standard | USB 2.0 |
| Voltage Rating (Vdc) | 5 |
| Wire Diameter (mm) | 4.7 |
| Wire Gauge (AWG) | 28 |
