| Manufacturer Part Number (MPN) | CAF-A225S-120-350 |
| Manufacturer | Same Sky (formerly CUI Devices) |

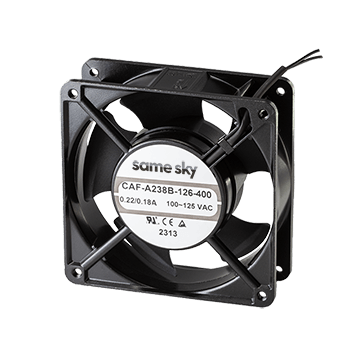

| Short Description | 110 V, 120 x 120 x 25 mm, Ac Axial Fan |
Request for Quotation
Supreme Components is an authorized distributor of Same Sky (formerly CUI Devices). We do not carry stock of this item but can quote upon request. Submit your request using the form.
Product Attributes
TYPE
DESCRIPTION
Category
Air Flow At 50hz (cfm)
51.94
Air Flow At 60hz (cfm)
53.87
Bearing Type
Sleeve
Current Rating At 50hz (ma)
160
Current Rating At 60hz (ma)
140
Dimensions Lxwxh (in)
4.72 x 4.72 x 0.98
Dimensions Lxwxh (mm)
120 x 120 x 25
Fan Type
Axial Fan
Height (mm)
25
Length (mm)
120
Max Input Current (ma)
190
Noise At 50hz (dba)
36.4
Noise At 60hz (dba)
140
Operating Temp Max (°c)
70
Operating Temp Min (°c)
-10
Operating Voltage (vdc)
100 ~ 125
Pwm Control Signal
No
Rated Power At 50hz (w)
14.2
Rated Power At 60hz (w)
10.8
Rated Speed At 50hz (rpm)
2000
Rated Speed At 60hz (rpm)
2000
Rotation Detector
No
Series
CAF-A2S
Static Pressure At 50hz (inh2o)
0.11
Static Pressure At 60hz (inh2o)
0.1
Tachometer Signal
No
Voltage Rating (vac)
110
Width (mm)
120
Full Description
110 V, 120 x 120 x 25 mm, Ac Axial Fan
