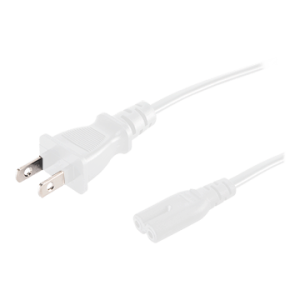

AC-C7-S-W JP
AC Cord Japan, C7 for C8 inlet, VCTFK 0.75MM/2, 1M, White, RoHS
Product Description
AC Cord Japan, C7 for C8 inlet, VCTFK 0.75MM/2, 1M, White, RoHS
Technical Specifications
| Attribute | Description |
|---|---|
| Cable Length (mm) | 1000 |
| Cable Style | Round |
| Color | White |
| Connector 1 | JIS 8303 |
| Connector 2 | C7 |
| Current Rating (A) | 7 |
| IP Rating | No IP Rating |
| Jacket Material | PVC |
| Operating Temp MAX (°C) | 105 |
| Operating Temp MIN (°C) | -20 |
| Series | AC-C7 JP |
| Shielding | No |
| Voltage Rating (Vac) | 125 |
| Wire Gauge (AWG) | 18 |
| Wire Gauge (mm) | 0.75 |
