89801088

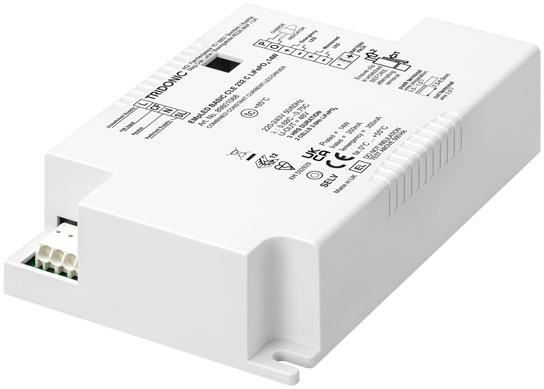

Tridonic LED Driver, 20W, 350-700mA, 1-10V dimming.
Datasheet
89801088 Datasheet
Product Description
The Tridonic 89801088 LED driver is a highly efficient and reliable solution for powering LEDs. This constant current LED power supply delivers 20W of power and supports 1-10V dimming, allowing for smooth and precise light level adjustments. The adjustable output current, ranging from 350mA to 700mA, provides versatility for different LED configurations. Ideal for use in commercial and residential lighting applications, the Tridonic 89801088 ensures consistent and flicker-free illumination. As an authorised distributor of Tridonic, Supreme Components International guarantees the authenticity and quality of this LED driver. Benefit from superior performance and longevity with this top-of-the-line LED power supply.
Technical Specifications
| Attribute | Description |
|---|---|
| Input Voltage Range | 220 to 240 Volts |
| Protection Features | Overload, Short Circuit, Overtemperature |
| Output Current Range | 350 to 700 Milliamperes |
| Output Power Wattage | 20 Watts |
| Dimming Control Interface | 1-10V |
| Operating Temperature Range | -20 Degrees Celsius to +50 Degrees Celsius |
