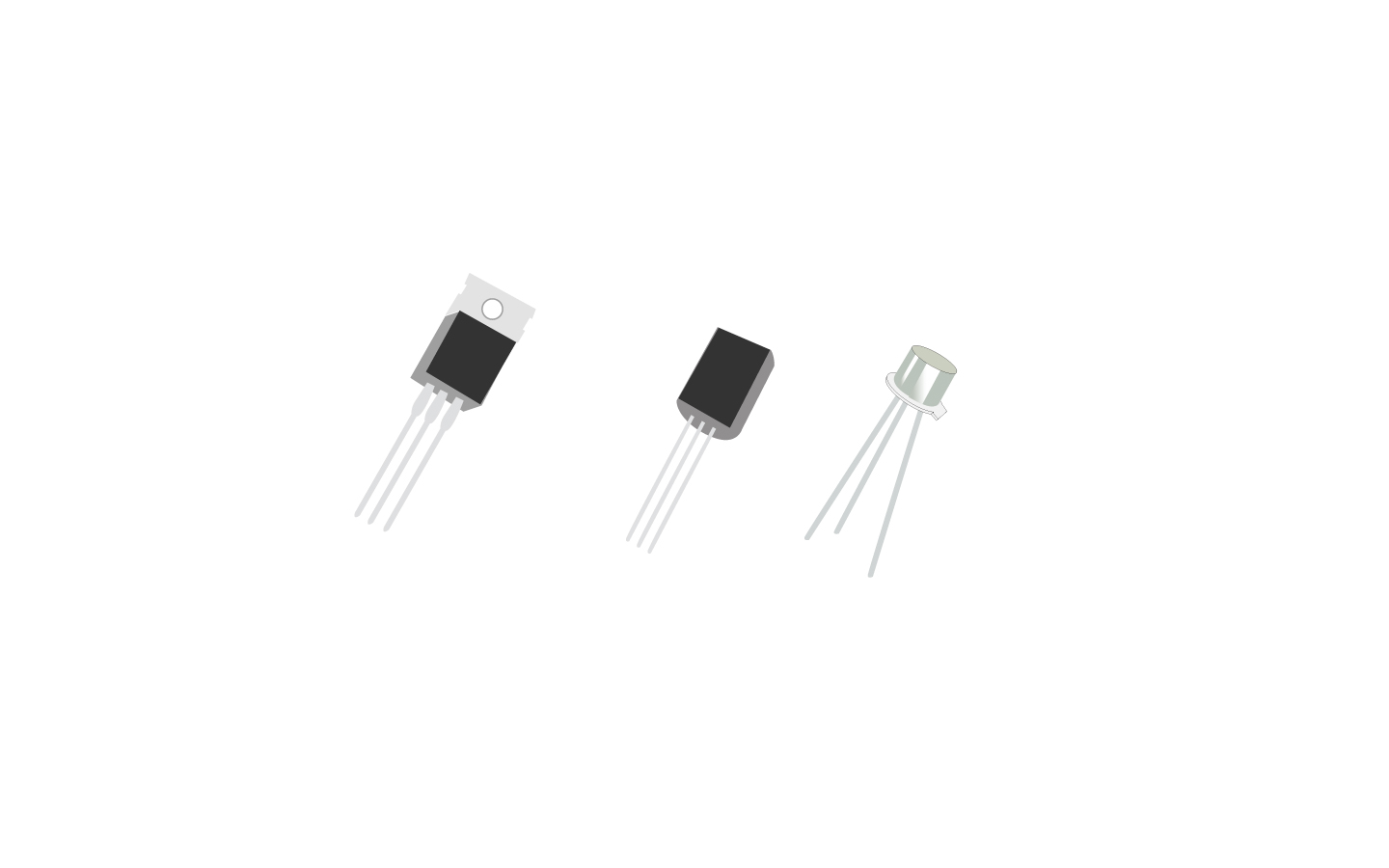

2N1574

PNP Transistor, 60V, 0.5A, TO-5 Package

The 2N1574 is a versatile PNP Bipolar Junction Transistor (BJT) manufactured by CENTRAL SEMICONDUCTOR. Supreme Components International is an authorised distributor of CENTRAL SEMICONDUCTOR components, ensuring you receive genuine and high-quality products. This transistor is housed in a TO-5 package and is designed for a wide range of applications, including amplification and switching circuits. With a collector-emitter voltage (Vceo) of 60V and a collector current (Ic) of 0.5A, the 2N1574 offers robust performance. Its PNP configuration makes it suitable for applications where a negative base current is required to turn the transistor on. This discrete semiconductor transistor is a reliable choice for both new designs and replacements in existing systems. Consider the 2N1574 for your next project requiring a dependable PNP transistor.

Product Categories

General Purpose Transistors Bipolar Transistors

Specifications

Parameter Value
Package Type TO-5
Dc Current Gain 20 to 60
Transistor Polarity PNP
Transition Frequency 50 Megahertz
Collector Current Maximum 0.5 Amperes
Power Dissipation Maximum 0.8 Watts
Maximum Operating Temperature 175 Degrees Celsius
Maximum Collector Emitter Voltage 60 Volts

Datasheet

Download Datasheet
