Manufacturer Part Number (MPN) 20 87 146 1302 100
Manufacturer Harting

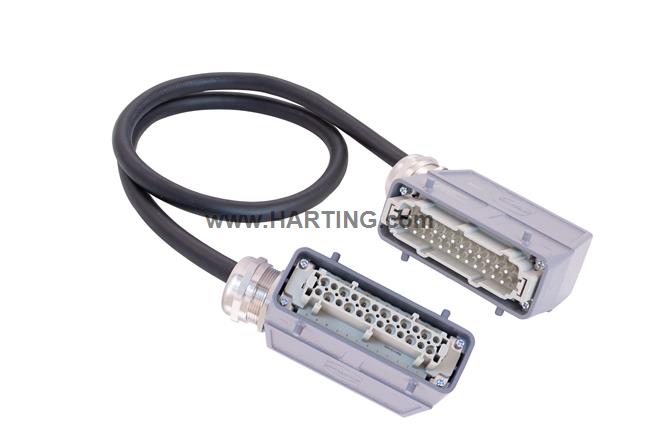

Short Description HARTING Han 16 HPR EasyCon Hood, straight cable entry, M40, with thread, size: 16 HPR, material: die-cast aluminum, powder-coated, locking element: single locking lever
Datasheet 📄 Datasheet

Supreme Components is an authorized distributor of Harting. We do not carry stock of this item but can quote upon request. Submit your request using the form.

Product Attributes

TYPE
DESCRIPTION
Category
Mating Cycles
Greater than or equal to 500
Connector Size
16 HPR
Surface Coating
Powder-coated
Connector Series
Han HPR
Housing Material
Die-cast aluminum
Pollution Degree
3
Locking Mechanism
Single locking lever
Ingress Protection
IP68
Hood Side Entry Type
Straight
Insulation Resistance
Greater than 10^10 Ohm
Cable Entry Thread Size
M40
Operating Temperature Range
-40 to +125 degrees Celsius

Full Description

The HARTING 20871461302100 is a robust Han 16 HPR EasyCon hood, ideal for heavy-duty power connector applications. This hood features a straight cable entry with an M40 thread, ensuring a secure and reliable connection for your power systems. Supreme Components International is an authorised distributor of HARTING products, guaranteeing the authenticity and quality of this component. Constructed from die-cast aluminum with a powder-coated finish, this hood offers exceptional durability and resistance to harsh environmental conditions. The single locking lever mechanism allows for quick and easy installation and maintenance, reducing downtime and improving overall efficiency. Its size 16 HPR designation makes it compatible with a wide range of HARTING connector inserts. This HARTING hood is designed to provide long-lasting performance and protection for your critical power connections.
