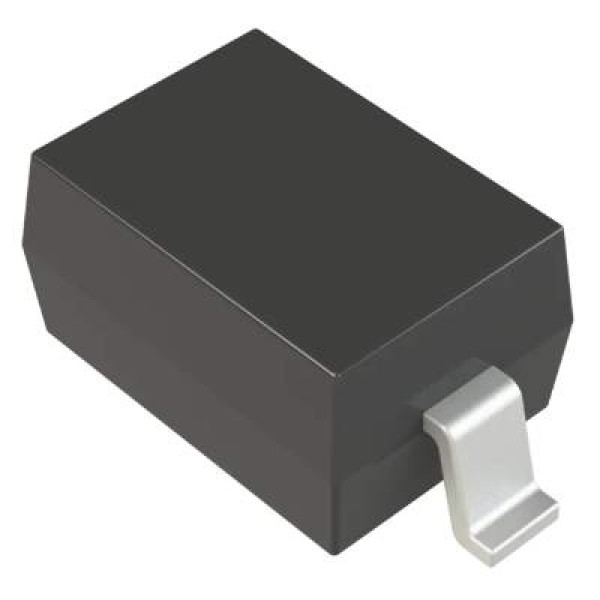

1.5KE10CA
1.5KE10CA TVS Diode, 1500W, 10V Vbr Min, DO-201
Datasheet
1.5KE10CA Datasheet
Product Description
Supreme Components International, an authorised distributor, presents the 1.5KE10CA TVS Diode manufactured by SMC DIODES. This diode is specifically engineered to protect sensitive electronic equipment from voltage transients induced by lightning, inductive load switching, and electrostatic discharge (ESD). The 1.5KE10CA features a minimum reverse breakdown voltage of 10V and a high peak pulse power dissipation of 1500W. Its DO-201 package allows for easy mounting and integration into various circuit designs. This TVS diode is a reliable solution for enhancing the robustness and longevity of electronic systems by effectively clamping transient voltages to safe levels. Choose Supreme Components International for guaranteed authenticity and quality.
Technical Specifications
| Attribute | Description |
|---|---|
| Polarity | Bidirectional |
| Package Type | DO-201 |
| Rated Voltage | 10 Volts |
| Power Dissipation | 1500 Watts |
| Peak Pulse Current | 88.2 Amperes |
| Maximum Clamping Voltage | 17 Volts |
| Maximum Breakdown Voltage | 11.7 Volts |
| Minimum Breakdown Voltage | 10 Volts |
| Maximum Reverse Leakage Current | 1000 microAmperes |
