09 40 148 0951

Manufacturer Part Number (MPN) 09 40 148 0951
Manufacturer Harting

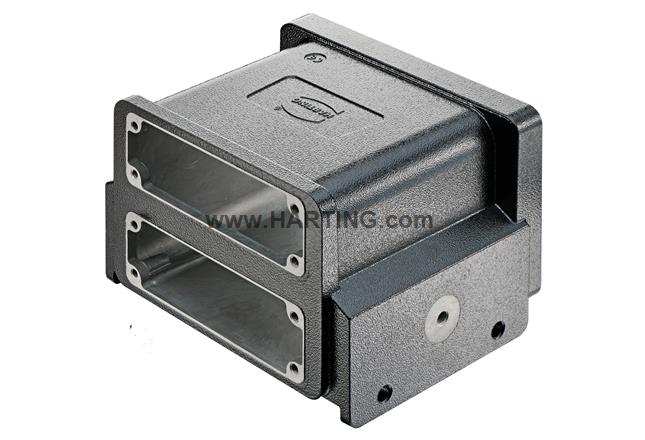

Short Description HARTING Han Q 148 Housing, Size 48 B, Cable Gland: M40, Side Entry
Datasheet 📄 Datasheet

Supreme Components is an authorized distributor of Harting. We do not carry stock of this item but can quote upon request. Submit your request using the form.

Product Attributes

TYPE
DESCRIPTION
Size
48 Bytes
Color
Dust Grey (RAL 7037)
Series
Han Q
Material
Aluminum Die-Cast
Connector Type
Hood
Cable Gland Size
M40
Protection Level
IP65
Locking Mechanism
Single Locking Lever
Surface Treatment
Powder-Coated
Flammability Rating
V-0 (UL 94)
Corrosion Resistance
Test KA (DIN EN 60068-2-11)
Cable Entry Direction
Side Entry
Operating Temperature
-40 to +125 Degrees Celsius
Number Of Cable Entries
1
Mating Cycles Durability
500 or More

Ordering Information

Parameter
Value
Weight
0.345_KG
Packaging Type
BOX

Full Description

The HARTING 09401480951 is a Han Q 148 series housing, size 48 B, specifically engineered for heavy-duty power connector applications. This robust housing features a side entry configuration and an M40 cable gland, providing secure and reliable cable termination. Designed to withstand harsh industrial environments, it ensures optimal performance and longevity. Supreme Components International is an authorised distributor of HARTING components, guaranteeing the authenticity and quality of this product. This housing is ideal for use in industrial machinery, power distribution systems, automation equipment, and other applications requiring robust and dependable power connections. Its durable construction and secure cable gland make it a reliable choice for demanding environments.

Looking for more Harting connectors? [Click here to browse all Harting parts]
