09 20 032 0531

Manufacturer Part Number (MPN) 09 20 032 0531
Manufacturer Harting

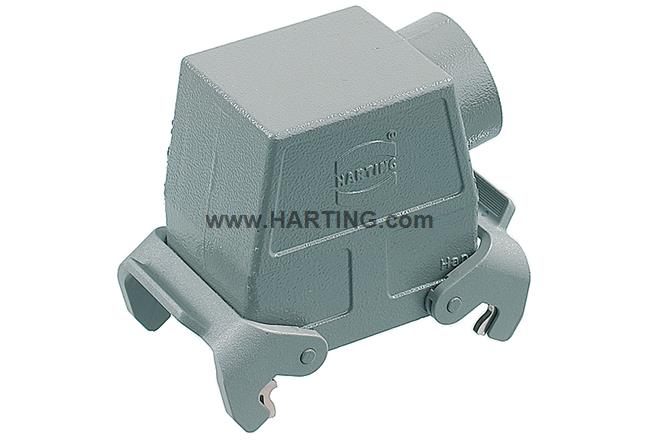

Short Description HARTING Han 32A Hood, Size: 6 B, Cable entry: M32, Material: Die-cast aluminium, Degree of protection: IP65
Datasheet 📄 Datasheet

Supreme Components is an authorized distributor of Harting. We do not carry stock of this item but can quote upon request. Submit your request using the form.

Product Attributes

TYPE
DESCRIPTION
Category
Size
6 B
Series
Han B
Material
Die-cast aluminium
Cable Entry
M32
Locking Type
Single locking lever
Mating Cycles
Greater than or equal to 500
Hood Side Entry
Side entry
Nominal Current
32 A
Nominal Voltage
500 V
Pollution Degree
3
Degree Of Protection
IP65
Limiting Temperature
-40 to +125 degrees Celsius
Insulation Resistance
Greater than 10^10 Ohms

Ordering Information

Parameter
Value
Weight
140 g
Packaging Type
BOX

Full Description

The HARTING 09200320531 is a Han 32A hood, size 6 B, specifically engineered for heavy-duty power connector applications. This robust hood features a M32 cable entry, simplifying installation and providing a secure connection. Constructed from high-quality die-cast aluminum, the 09200320531 offers exceptional resistance to corrosion and mechanical stress. With an IP65 degree of protection, this HARTING hood is sealed against dust and water, making it ideal for use in harsh industrial environments. Supreme Components International is an authorised distributor of HARTING products, ensuring you receive a genuine and reliable component. This hood is designed to provide a secure and reliable connection for your power applications, offering long-lasting performance and peace of mind.
