09 20 010 3001

Manufacturer Part Number (MPN) 09 20 010 3001
Manufacturer Harting

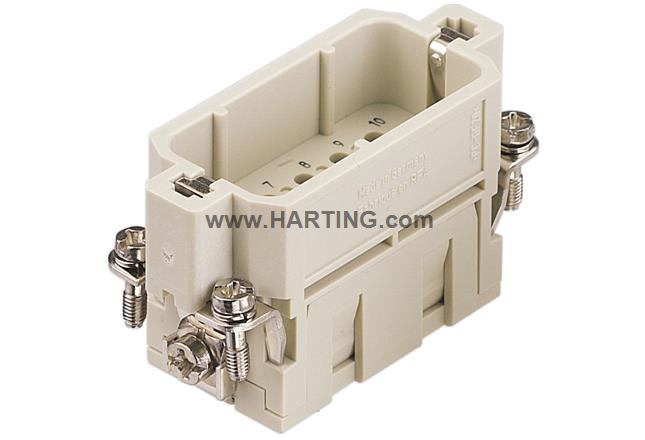

Short Description HARTING Han 10A-STI-M, male insert, 10 contacts, screw termination
Datasheet 📄 Datasheet

Supreme Components is an authorized distributor of Harting. We do not carry stock of this item but can quote upon request. Submit your request using the form.

Product Attributes

TYPE
DESCRIPTION
Category
Gender
Male
Wire Gauge
0.5 to 2.5 square millimeters
Mating Cycles
Greater than or equal to 500
Rated Current
10 Amperes
Rated Voltage
230 Volts
Wire Gauge Awg
20 to 14 AWG
Contact Surface
Silver
Contact Material
Copper Alloy
Pollution Degree
3
Protection Degree
IP20
Temperature Range
-40 to +125 degrees Celsius
Contact Resistance
Less than 3 milliohms
Number Of Contacts
10
Termination Method
Screw
Flammability Rating
V-0
Insulation Material
Polycarbonate
Insulation Resistance
Greater than 10 to the power of 10 Ohms
Rated Impulse Voltage
4 Kilovolts

Ordering Information

Parameter
Value
Weight
20.5 g
Packaging Type
BOX

Full Description

The HARTING 09200103001 is a robust Han 10A-STI-M male insert, specifically engineered for demanding heavy-duty power connector applications. This insert features 10 contacts, providing ample connections for various power and signal transmission needs. The screw termination method ensures a secure and reliable connection, minimizing the risk of disconnections in harsh environments. Supreme Components International is an authorised distributor of HARTING, guaranteeing that you receive a genuine, high-quality product. This insert is ideal for use in industrial machinery, automation systems, and other applications where reliable power connections are critical. Its durable construction and secure termination make it a dependable choice for long-term performance. Choose HARTING for superior connectivity solutions.
