09 14 904 1101

Manufacturer Part Number (MPN) 09 14 904 1101
Manufacturer Harting

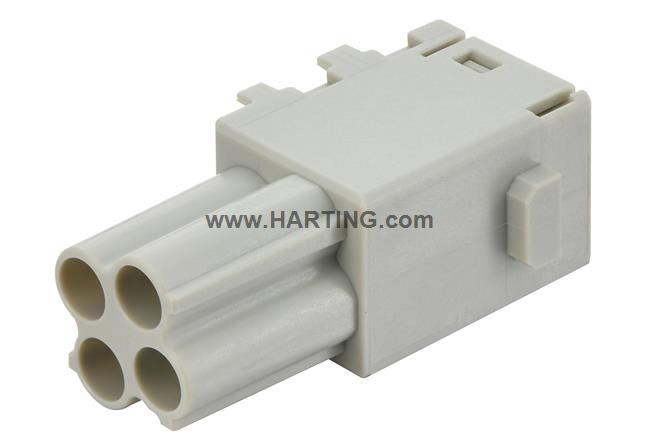

Short Description <p>HARTING Han 4A-STI-M-S 4+PE insert male screw termination</p>
Datasheet 📄 Datasheet

Supreme Components is an authorized distributor of Harting. We do not carry stock of this item but can quote upon request. Submit your request using the form.

Product Attributes

TYPE
DESCRIPTION
Gender
Male
Wire Gauge
0.75 to 2.5 square millimeters
Mating Cycles
Greater than or equal to 500
Rated Current
16 Amperes
Rated Voltage
230/400 Volts
Wire Gauge Awg
18 to 14 AWG
Connection Type
Screw connection
Contact Surface
Silver
Insert Material
Polycarbonate
Contact Material
Copper alloy
Pollution Degree
3
Temperature Range
-40 to +125 degrees Celsius
Contact Resistance
Less than 3 milliOhms
Number Of Contacts
4 plus Protective Earth
Termination Method
Screw
Insulation Resistance
Greater than 10 to the power of 10 Ohms
Rated Impulse Voltage
4 kilovolts
Flammability Class According To Ul94
V-0
Protection Degree According To Dinen60529
IP20

Full Description

The HARTING 09149041101 is a male insert from the Han 4A series, designed for robust and reliable connectivity in industrial environments. Featuring 4+PE (Protective Earth) contacts, this insert ensures safe and efficient power and signal transmission. The screw termination method provides a secure and durable connection, minimizing the risk of disconnection due to vibration or mechanical stress. As an authorised distributor of HARTING products, Supreme Components International guarantees the authenticity and quality of this connector insert. The 09149041101 is suitable for a wide range of applications, including machinery, automation, robotics, and control systems. Its compact design and easy installation make it a versatile solution for various connectivity needs. Choose HARTING for dependable performance and long-lasting durability. Supreme Components International provides expert support and fast delivery for all your HARTING connector requirements.
