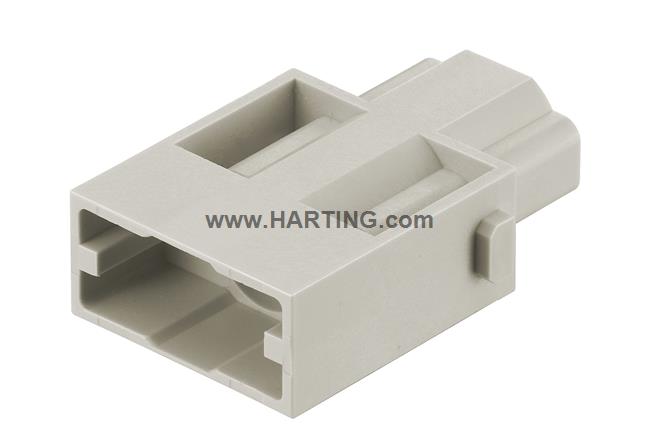

09 14 001 3031

09 14 001 3031

The Harting 09140013031 is a robust male insert from the Han 1A series, specifically engineered for demanding heavy-duty power connector applications. This insert features 1+PE contacts, providing a reliable connection for both power and protective earth. The integrated M20 cable gland ensures secure and strain-relieved cable entry. Screw termination simplifies the wiring process, making installation quick and efficient. This connector is ideal for use in industrial machinery, automation systems, and other applications where a dependable and durable power connection is essential. Supreme Components International is an authorised distributor of Harting products, guaranteeing the authenticity and quality of this component. Trust Harting and Supreme Components International for your critical connectivity needs.

Specifications

Parameter Value
gender Male
series Han 1A
material Polyamide (PA)
wireGauge 0.14 to 2.5 square millimeters
cableGland M20
matingCycles Greater than or equal to 500
ratedCurrent 16 Amperes
ratedVoltage 400 Volts
pollutionDegree 3
numberOfContacts 1 + Protective Earth
protectionDegree IP20/IP65/IP68
temperatureRange -40 to +85 degrees Celsius
contactResistance Less than 3 milliOhms
terminationMethod Screw
insulationResistance Greater than 10 to the power of 10 Ohms
flammabilityRatingUL94 V-0

Looking for more information about 09 14 001 3031?

Download Datasheet
