09 12 012 3004

Manufacturer Part Number (MPN) 09 12 012 3004
Manufacturer Harting

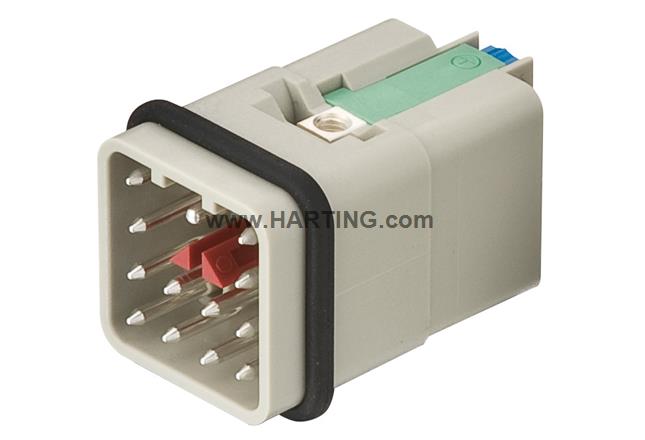

Short Description HARTING Han 12E Inserts - Male, 12 Contacts, Screw Termination
Datasheet 📄 Datasheet

Supreme Components is an authorized distributor of Harting. We do not carry stock of this item but can quote upon request. Submit your request using the form.

Product Attributes

TYPE
DESCRIPTION
Category
Gender
Male
Material
Polycarbonate
Wire Gauge
0.5 to 2.5 square millimeters
Mating Cycles
Greater than or equal to 500
Rated Current
16 Amperes
Rated Voltage
500 Volts
Pollution Degree
3
Temperature Range
-40 to +125 degrees Celsius
Contact Resistance
Less than 3 milliohms
Number Of Contacts
12
Termination Method
Screw
Insulation Resistance
Greater than 10 to the power of 10 Ohms
Rated Impulse Voltage
6 Kilovolts
Flammability According To Ul94
V-0

Full Description

The HARTING 09120123004 is a male insert from the Han 12E series, specifically engineered for demanding heavy-duty connector applications. This insert features 12 contacts, providing ample connectivity for various signal and power transmission needs. The screw termination method ensures a secure and reliable connection, minimizing the risk of disconnections in harsh environments. Supreme Components International is an authorised distributor of HARTING components, guaranteeing the authenticity and quality of this product. This insert is ideal for use in industrial machinery, automation systems, and other applications where robust and dependable connectivity is crucial. Its durable construction and reliable performance make it a valuable component for ensuring the smooth operation of critical systems.

Looking for more Harting connectors? [Click here to browse all Harting parts]
