09 10 005 3006

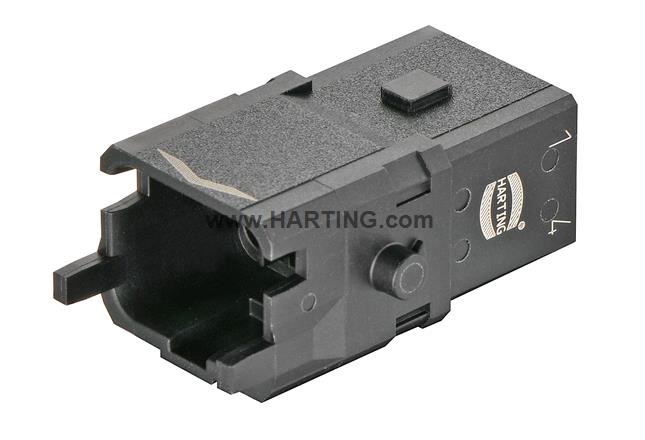

HARTING Han E Inserts - Male, 5 Contacts, 16A, Screw Termination
Datasheet
09 10 005 3006 Datasheet
Product Description
The HARTING 09100053006 is a robust Han E series male insert, specifically engineered for demanding heavy-duty power connector applications. This insert features 5 contacts, each capable of handling a 16A current, ensuring reliable and efficient power transmission. The screw termination method provides a secure and straightforward connection, simplifying installation and maintenance. Designed for industrial environments, the Han E series offers exceptional durability and performance. Supreme Components International is an authorised distributor of HARTING electronic components, guaranteeing that you receive a genuine, high-quality product. This insert is perfect for applications requiring a dependable and rugged power connection solution. Trust HARTING and Supreme Components International for your connectivity needs.
Technical Specifications
| Attribute | Description |
|---|---|
| Gender | Male |
| Material | Polycarbonate |
| Wire Gauge | 0.75 to 2.5 square millimeters |
| Current Rating | 16 Amperes |
| Voltage Rating | 500 Volts |
| Pollution Degree | 3 |
| Contact Resistance | Less than 1 milliOhm |
| Number Of Contacts | 5 |
| Termination Method | Screw |
| Flammability Rating | UL 94 V-0 |
| Insulation Resistance | Greater than 10 to the power of 10 Ohms |
Ordering Information
| Attribute | Description |
|---|---|
| WEIGHT | 22.5 g |
| Packaging Type | BOX |
