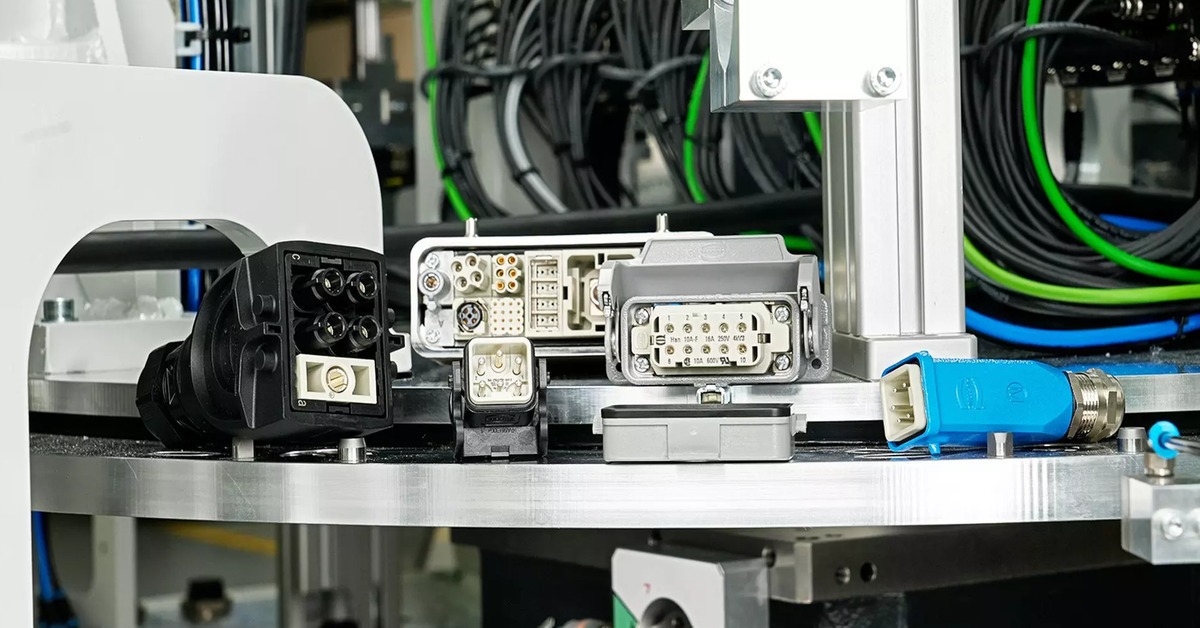

High-Density Connectors for EV & Industrial Systems

Why high-density connectors need more current-carrying capacity:

EV powertrain and industrial automation connectors are pushing more current through smaller, denser contact arrays than before. As a result, every contact’s cross-section, plating, and mating force now directly decides how much current a connector can carry without derating. In practice, get it wrong, and it shows up as heat, not a warning light. EV charging connectors built to standards like SAE J1772 illustrate the trend well: the physical footprint hasn’t grown much, but the current it’s expected to carry certainly has.

Worth knowing how that rating is derived. Under EIA-364-70, current-carrying capacity is the current producing a 30 °C rise above ambient, with a 20% derating applied. Critically, it is measured across contact configurations from two pins to a hundred — because a connector’s per-contact rating falls as more adjacent contacts are energised. A part rated on a two-pin test will not hold that rating with every contact live. Standard: EIA-364-70.

Contact resistance determines the real lifespan of industrial connectors:

A few extra milliohms don’t show up on a datasheet review. Instead, they show up as heat under sustained load, months into the field. Together, plating choice, normal force, and mating cycles all move contact resistance. In high-density connectors built for high-current EV and industrial applications, that number is often the real limiting factor on connector life — not the housing.

Plating is where this is decided, and it is a cost trade rather than a right answer. Tin is the volume default: far cheaper, and entirely reliable in static, low-cycle applications with adequate contact normal force. Gold costs more and buys two things — a higher mating-cycle rating, and resistance to fretting corrosion, where micro-movement from vibration or thermal cycling exposes fresh metal, oxide debris builds at the interface and contact resistance climbs. The question is not which plating is better but whether the application moves, cycles thermally, or needs repeated mating — and what that risk is worth against the price difference. Standards: ASTM B488; EIA-364-09.

Vibration failures rarely show up on the bench:

Motors, gearboxes, and factory floors don’t sit still. Even a connector that passes a bench test can walk itself loose over months of continuous vibration. That’s why locking mechanisms, contact retention, and terminal design matter more here than in almost any other interconnect application. Ultimately, a marginal choice today becomes an intermittent fault report six months later.

Bench tests vary, which is why the standard being quoted matters more than the fact that one was run. In automotive, SAE/USCAR-2 grades severity by mounting location — roughly 1.8 g rms for chassis-mounted parts up to around 12 g rms for engine-mounted ones — with the more severe grades adding thermal cycling during the run; LV214 is the European equivalent. Industrial and rail equipment is usually qualified instead to IEC 60068-2-6 and 60068-2-64, with EN 61373 covering rolling stock. The point is the same in both worlds: a vibration figure means nothing without the standard, the grade and the mounting assumption attached. Ask for all three. Standards: SAE/USCAR-2; LV214; IEC 60068-2-6 and 60068-2-64; EN 61373.

Sealing requirements for EV and industrial connectors are no longer optional:

Underhood, outdoor, and plant-floor environments expose connectors to dust, coolant, washdown, and temperature swings. Simply put, a standard-pitch connector was never designed for that. As a result, IP67/IP68-rated sealing — once a spec reserved for automotive-grade parts — is now showing up on industrial automation BOMs as an increasingly common requirement, not an upgrade.

IP67 and IP68 are not the whole picture. For plant-floor washdown the rating is IP69K, defined in ISO 20653 rather than IEC 60529: 80 to 100 bar at 80 °C, 14 to 16 litres per minute, from four nozzles at 0, 30, 60 and 90 degrees. Note also that IP68 is a manufacturer-defined immersion depth rather than a fixed test — and neither rating implies the other. Hot high-pressure jets and deep immersion are different problems. Standards: ISO 20653; IEC 60529.

Volume commitments quietly set your high-density connector lead time:

Connector manufacturers increasingly tier lead time and pricing by committed volume, not just part complexity. In fact, a high-density connector that looks identical on paper to last year’s part can ship in weeks — or in months — depending on whether the program behind it has a forecast attached. That makes it a sourcing conversation, not just an engineering one.

Reliability is the spec that actually matters for high-density connectors:

Current rating, contact resistance, vibration resistance, and sealing all point to the same conclusion. In EV and industrial systems, a high-density connector’s reliability under real operating conditions is the spec that decides whether a design works — not its size or its unit price. Designing with that in mind, and sourcing accordingly, is what keeps a program out of the field-failure column.
